Understanding AVs: What they are, how they work, & what the future holds

3-dimensional render of a futuristic self-driving car using sensors to navigate the freeway

By AAA staff

09-09-2016

Without question, the hottest topic in the automotive world today is autonomous vehicles (AVs).

They represent the biggest change in passenger vehicles since the invention of the internal combustion engine, and their development and adoption can change our lives in an unprecedented way. Self-driving cars could make travel safer by removing human error, more comfortable by removing the need for human attention, and faster by allowing artificial intelligence to coordinate traffic.

But AVs may also create unintended consequences that could disrupt our lives. Before they can become widespread, manufacturers will need to overcome many technical hurdles. And along the way, there will be ethical dilemmas and policy challenges.

So what exactly are AVs? How do they work? How will we know when a car is truly self-driving, and how close are we to that? And most importantly, what could this future look like?

What is an autonomous vehicle?

An autonomous vehicle is one in which at least some aspects of a safety-critical control function (such as steering, acceleration, or braking) occur without direct driver input. AVs use a variety of technologies, including radar, lidar, ultrasonic sensors, GPS, cameras, and artificial intelligence to navigate surroundings.

Autonomy isn't an all-or-nothing proposition. In 2016, the National Highway Traffic Safety Administration adopted AV terminology created by the Society of Automotive Engineers that specifies 6 levels of vehicle automation:

  • Level 0 (no automation)
    The driver performs all driving tasks and is responsible for monitoring the environment.
    Example: Most cars made before 2012.
  • Level 1 (driver assistance)
    The vehicle is mainly controlled by the driver, but autonomous features may assist with steering or speed, though not both functions simultaneously.
    Examples: Adaptive cruise control, automatic emergency braking, lane-keeping assist. Offered on less than 25% of vehicles in 2012, Level 1 features were optional or standard equipment on more than 60% of 2017 vehicles.
  • Level 2 (partial automation)
    In some situations, automated systems may assist with both speed and steering. The driver must remain engaged with driving and continue to monitor the environment.
    Examples: Mercedes-Benz Intelligent Drive, Tesla Autopilot, Volvo Pilot Assist.
123
  • Level 3 (conditional automation)
    In certain situations, the automated system can carry out all parts of the driving task and monitor the driving environment, but the human driver must be ready to take control when requested. For example, if the vehicle determines a collision is imminent, it will warn the driver to take control in an effort to prevent a crash or reduce its impact. However, some automakers—Ford, for example—believe it's unrealistic to expect humans to safely retake control of a vehicle, so they're skipping Level 3 and going to Level 4.
    Examples: None currently available.
  • Level 4 (high automation)
    Under certain conditions, the automated system can perform all driving functions even if a driver does not respond to requests to intervene. The driver can still control the system manually.
    Examples: None currently available.
  • Level 5 (full automation)
    The automated system can perform all driving tasks under all conditions. This is an ideal state and a "moving target." If it's achievable, automakers don't want to expend time and money on human-operated controls.
    Examples: None currently available; however, in late 2017, Waymo (formerly Google's driverless car division) was employing a fleet of 600 Chrysler Pacifica hybrid minivans with the goal of achieving Level 5 capability.
waymo

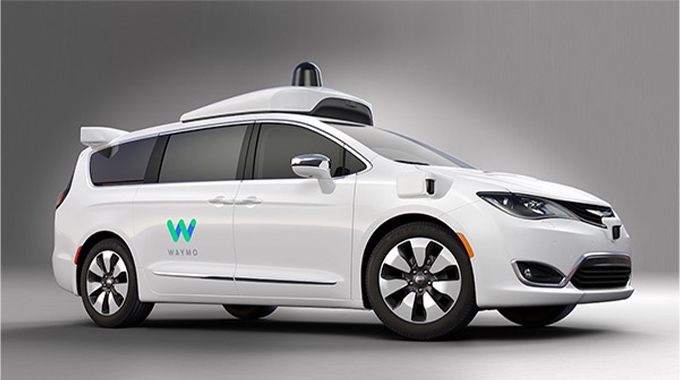

Waymo is using hundreds of Chrysler Pacifica hybrid minivans in an attempt to develop Level 5 autonomous capability.

How do autonomous vehicles work?

artificial

Unlike human drivers with their eyes, ears, and brains, autonomous cars rely on mechanical sensors and advanced artificially intelligent programming. No single sensor can properly detect the full range of scenarios a car might encounter, so current experimental AVs use a suite of sensors:

  • Cameras watch out for other vehicles, pedestrians, and objects. Unlike radar and lidar, cameras can see color, so they also read road signs and traffic lights.
  • Radar sensors use radio waves to detect obstacles, such as other vehicles, especially in low-visibility weather where cameras and lidar don't work well. Radar is especially good at telling how fast other vehicles are moving.
  • Lidar uses lasers to map out a 3D model of an AV's surroundings. Lidar is more precise than radar and cameras, but also more expensive. Lidar sensors are often placed on a rapidly spinning hub to provide 360-degree sensing.
  • Ultrasonic sensors use sound to precisely detect close-by objects, such as other vehicles and the curb when parking, much as they do today in many non-autonomous vehicles.
  • GPS is used in concert with other sensors to allow an AV to know exactly where it is and where it's going.
  • Artificial intelligence in a central computer synthesizes information from the various sensors to create one coherent model of the driving environment, which is used to steer, accelerate, and brake the vehicle. The AI must interpret sensor information correctly and understand the written and unwritten rules of the road—for example, it must be able to distinguish between a pedestrian stepping into the street and a plastic bag blowing in the wind.

What companies are working on driverless cars?

An increasing number of vehicles are available with advanced driver-assistance systems such as adaptive cruise control, automatic emergency braking, blind-spot monitoring, and lane-keeping assist. These systems are the foundation for the levels of autonomy described above. AV is developing at an unprecedented rate, and not just among automakers. Tech firms and software companies including Apple, Intel, and Waymo are involved, as are automotive suppliers like Bosch and Delphi and ride-hailing companies like Uber and Lyft.

Some of these companies, such as Lyft, are developing software and partnering with a variety of automakers that will build the AVs. Others are building their own complete cars—hardware and software. Many companies are investing in or forming what might seem on the surface as unlikely connections, such as Waymo's partnership with Avis.

Hundreds of companies are getting in on the action, for one simple reason: If AVs are genuinely the future of mobility, there's a potential multibillion-dollar market for this technology, which could also change our models regarding transportation and mobility.

It's likely that the first areas where we'll see autonomous technology are commercial ventures, such as food and package delivery, ride-hailing services, various types of trucking, shuttle transportation around university and industrial campuses, and so on, rather than private passenger cars. Here's what's happening with some major players in the AV arena:

Audi
By 2020-2021, Audi says it plans to introduce a Level 4 Highway Pilot feature, which offers hands-free driving at posted limited-access-highway speeds, enabling the vehicle to execute lane changes and pass cars autonomously.

Cadillac
Cadillac's Super Cruise provides hands-free driving at highway speeds on divided highways without intersections. Super Cruise debuted in 2017 on the company's 2018 CT6 sedan. Drivers must still be engaged; a camera and infrared scanners determine if a driver isn't paying sufficient attention.

guyDriving

Cadillac's Super Cruise, which debuted in 2017 on the automaker's CT6 sedan, provides hands-free driving on divided highways without intersections, but still requires the driver to pay attention.

Chevrolet
In 2017, GM began testing third-generation autonomous Chevrolet Bolt EVs in San Francisco, Detroit, and Phoenix, with New York City following in early 2018—the first in the state for what will likely be a Level 4 autonomous unit. Bolt AVs are equipped with dozens of cameras and sensors, including a roof rack with lidar and laser units that spin to give a 360-degree view of the environment. The company plans to deploy autonomous Bolts for use in ride-sharing operations (as part of its Maven brand).

Ford
Ford has stated that it will bring autonomous vehicles to market in 2021. This would be a Level 4 vehicle without a steering wheel, accelerator, or brake pedal, for use in a ride-hailing service.

Nissan
ProPilot Assist is Nissan's semi-autonomous approach to help make stop-and-go driving bearable by controlling steering, acceleration, and braking. With ProPilot Assist, the driver's hands need to remain on the wheel. It's available on the 2018 Rogue SUV and Leaf EV.

Lyft
In mid-2017, ride-hailing company Lyft announced plans to build its own autonomous technology in a new lab in Palo Alto, California. The software and hardware can be integrated into a variety of vehicles; to that end, Lyft has formed partnerships with a number of companies, including General Motors, nuTonomy, Jaguar Land Rover, and Waymo. Company spokespeople have said they expect AVs to provide the majority of the company's rides in the next 5 years.

Uber & Volvo
In late 2017, Uber announced a deal to purchase 24,000 of Volvo's XC90 crossover SUVs. Intended for use in fully driverless operations (a.k.a. "robotaxis"), the 24,000 XC90s are slated to be delivered to Uber between 2019 and 2021. Volvo will equip the vehicles with its proprietary autonomous technology and sensors, and Uber will outfit the vehicles with its self-driving software. The vehicles will have the redundancy required for Level 4 autonomy.

Waymo
In spring 2017, Waymo expanded its fleet of autonomous Chrysler Pacifica plug-in hybrids by 500 additional vehicles, bringing the total to 600. It's now testing its AVs in 6 states. The extra minivans were necessary for Waymo's test project in the Phoenix area, which made rides available to the public, first with an onboard driver, then in driverless vehicles in November 2017.

When could the future of autonomous vehicles look like?

Many of the companies working on AVs expect to have limited numbers of Level 4 cars capable of autonomously driving without human input in limited situations by the early 2020s. Many technological hurdles remain, such as driving in low-visibility weather, and it will take years of research before Level 5 vehicles capable of handling all situations could become available. One estimate comes from Loup Ventures, a venture capital firm that predicts growing demand for Level 4 and Level 5 AVs starting in 2028 and that most vehicles sold will be Level 4 or Level 5 AVs by the mid-2030s.1

AVs may bring substantial positive changes to vehicle travel. According to the National Highway Traffic Safety Administration, human error is responsible for 94% of traffic collisions, which over the past decade have resulted, on average, in about 35,000 deaths, millions of injuries, and billions of dollars in economic losses annually. Experts estimate that connected and automated vehicles could prevent up to 80% of vehicle crashes, particularly those caused by distraction, inattention, and drunken or drugged driving.

Similarly, AVs could make travel more comfortable, productive, and efficient. As one example, the traffic from Americans' daily commutes could be reduced through AVs traveling safely and predictably a few feet from one another at relatively uniform speeds. People could find themselves enjoying free time to relax, sleep, get a jump on the day's activities, or talk with other passengers on their way to work. New ride-sharing business models will likely emerge, too, giving segments of the population—minors, people with disabilities, people who don't have a driver's license, and those who don't have a car—increased mobility options.

slow slowest

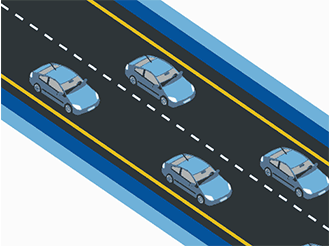

Today: Human motorists must leave gaps between cars because they can't predict other drivers' moves and need time to react.

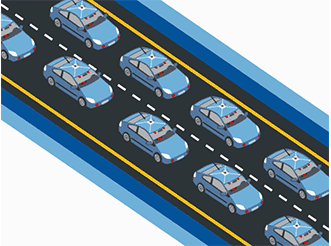

Future: AVs that can respond at high speeds and communicate with one another might travel closer together, alleviating congestion.

There will be plenty of ethical and regulatory issues to resolve along the way. If an AV crashes, injuring or killing passengers, who will be responsible—the AV owner or the manufacturer? In addition, millions of Americans use vehicles to make their living—delivery services, small-business owners, repair services, and bus, truck, and taxi drivers. How will those industries evolve as AVs enter the commercial space? How do AVs and human-piloted cars share the road? How does an AV signal its intent to a human driver or pedestrian? Will AVs alleviate or increase traffic?

As AV develops, AAA urges the gradual, safe introduction of these technologies to ensure that American drivers are informed, prepared, and comfortable with this unprecedented shift in mobility.
