After the ARC completes vehicle testing, it ranks the scores for each test area on a 0- to 10-point basis. The best-scoring vehicle receives 10 points and the lowest receives 0 points. Then the scores from all the tests for a particular vehicle are totaled to determine its overall score. The maximum possible score is 130.
The following are the 13 criteria ARC staff use to evaluate and score vehicles:
Emission score. A vehicle’s emission score is taken directly from the EPA’s ratings. It’s the equivalent of the EPA’s smog rating, which is found on all new-vehicle window stickers. The rating is on a scale of 1 through 10 (with 10 being the best), determined by the vehicle’s emission levels. All vehicles have a federal rating, and all vehicles sold in California must pass California exhaust-emission standards. So most vehicles will have both a federal and a California rating, although the EPA window sticker shows only the federal rating.
In some cases, automakers send dealers in California (and the other states that share the same emission standards) vehicles that produce lower exhaust emissions than the same vehicles sold in other states. The AAA Car Guide uses the federal rating in its calculations, unless the vehicle is one with a drivetrain configuration sold only in California.
Braking. The braking score is based on recorded stopping distances measured by an optical fifth wheel (a device used to measure time, distance, and speed) attached to vehicles when testing them at the Auto Club Speedway. The braking-distance score is the average of 3 sudden-stopping distances from 50 to 0 mph.
Acceleration. A vehicle is given an acceleration score based on its 0-to-60 mph and 40-to-60 mph elapsed times, which are measured using an optical fifth wheel. A total of 12 acceleration tests per vehicle at each speed interval are performed on the drag strip at the Auto Club Speedway, 6 heading west and 6 heading east. ARC staff then average the best 2 times in each direction. The vehicles with the best and worst elapsed times are rated with a 5 or a 0, respectively.
All vehicles are then rated on the basis of both components on a scale from 0 to 5 each, relative to the other vehicles included in the guide. The maximum number of points a vehicle can earn is 10; that means it has both the best 0-to-60 mph and 40-to-60 mph times.

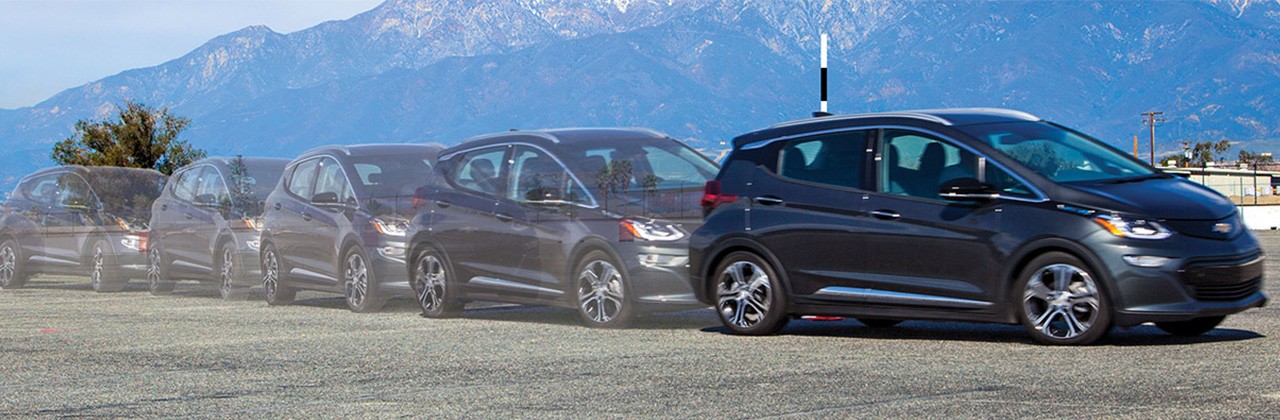

Handling. The handling score consists of 3 parts, each based on a slalom-course evaluation. A minimum of 2 ARC evaluators drive a vehicle through the slalom course at least 6 times each. The average of the top 3 slalom times overall is used to obtain the slalom time for that vehicle. The 2 other subscores that make up the overall handling score are derived from subjective ratings of control and ease of operation.
Crashworthiness. A vehicle’s crashworthiness score is calculated based on the weight of the vehicle and the number of air bags. Typically, each vehicle is weighed on a public scale with a full tank of gas and no occupants. In some cases, the weight is obtained from the manufacturer. The maximum score based on weight is 5 points.
A vehicle is also awarded points based on its number of air bags, with a maximum of 5 points.
The number of air bags in our scoring often differs from what’s reported by the manufacturer. For example, a manufacturer typically counts a full side-curtain air bag as 1 air bag, but because it protects both the front and rear passengers, the ARC counts it as 2.
Cargo capacity. This refers to the trunk area, or for vehicles such as hatchbacks, the area behind the second seat. In most cases, this number is taken from the current EPA Fuel Economy Guide. The vehicle with the smallest cargo capacity is given a score of 0, and the vehicle with the largest capacity is given a 10. All other vehicle scores are then rated relative to these minimum and maximum cubic-feet values.
Ride quality. This measurement is derived from subjective scores of 8 ride qualities: bump-impact noise, bump-impact feel, dip response, body shake (smooth road), body shake (rough road), ride firmness, sway (pitch), and sway (cornering). Each ARC evaluator rates the vehicles using scores from 0 to 10 for each attribute. The overall average is the ride-quality score.
Ease of entry and exit. The driver’s seat of the vehicle is set to the comfort level of each evaluator, who then rates 9 attributes associated with the difficulty level of exiting and entering the vehicle’s front and rear seats. The vehicle is also given a score based on the door swing or door angle for both the front and rear seats, which is factored into the overall rating for the front and rear. The average of the 2 overall ratings (front and rear) given by each evaluator becomes the overall score, on a scale from 0 to 10.
Roominess. This score is based on measurements for leg, head, and shoulder room in the front and rear seat, a total of 10 possible points. After all vehicles have been tested, the minimum and maximum values for each measurement are calculated. The vehicles are then scored relative to the other vehicles in the guide. Legroom and headroom can receive a maximum of 2 points, and shoulder room can receive up to 1 point.
Interior noise. ARC evaluators measure interior noise with a decibel meter inside the vehicle at idle, at steady-state 30 mph, at steady-state 55 mph, and during an acceleration run from 0 to 60 mph. The vehicle with the noisiest interior at each measured interval receives a subscore of 0; the vehicle with the quietest interior receives a 10. All other vehicles are then scored relative to the minimum and maximum decibel values, and an overall score for interior noise is calculated.
Visibility. There are 4 subjective visibility categories that each evaluator rates: forward, rear, and side visibility, each with their own set of attributes; and the side-mirror controls. Each individual attribute (for example, forward distance visibility) is rated on a scale from 0 to 10. A vehicle gets additional points in each category if it has a rear-window defroster, rear-window wiper, heated windshield, heated side mirrors, or if the right-side mirror tilts down when the vehicle is in reverse. Some attributes, including headlight illumination, are weighted more heavily. The ARC calculates an average based on all evaluator ratings and uses the overall average of all the scores to obtain the raw score.
Fuel economy. The ARC uses EPA estimates of combined mpg, and the ratings are ranked from highest to lowest. The vehicle with the best fuel economy gets 10 points; the vehicle with the lowest gets 0. All EVs get a score of 10. For gasoline vehicles, if a vehicle uses regular-grade fuel, it receives 2 additional points (1 for midgrade). The high, low, and average on-the-road fuel economy for gasoline and hybrid vehicles obtained during the test vehicle’s evaluation is also noted, but is not included in the fuel economy score. Generally, at least 3 evaluators drive each test vehicle over a weeklong period.
